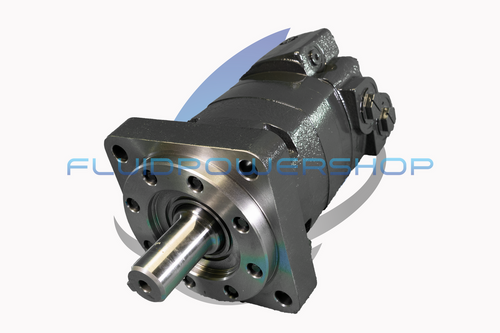

NEW AFTERMARKET REPLACEMENT FOR CHAR-LYNN 109-1493-006 MOTOR / 109-1493-AFT

product description

NEW AFTERMARKET REPLACEMENT FOR CHAR-LYNN 109-1493-006 MOTOR / 109-1493-AFT

Form, fit, and function the same, at a substantial savings

All units are TESTED same day prior to shipment, and come complete with a 2-year warranty

Item is in stock, ships same day with an order placed by 2pm EST. Repair parts also in stock

Questions? Give us a call 24hrs a day 1-877-FLUIDPOWER

--------------------------------------------------------------------------------

Specifications:

Aftermarket Char-Lynn Motor 4000 Series

DISPLACEMENT: 15.03 in3/r [246.3 cm3/r]

SHAFT: 1.250 [31.75] DIA. STRAIGHT WITH .375-16UNC-2B THREAD, 2.09 [53.1] MAX COUPLING LENGTH, .3125 [7.938] SQ x 1.625 [41.27] STRAIGHT KEY

MOUNT: STANDARD, 4 BOLT; 5.000 [127.00] PILOT DIA. .562 [14.27] DIA. HOLES ON 6.375 [161.92] DIA. BOLT CIRCLE. (SAE C)

PORT SIZE: 1.0625-12 UN-2B SAE O-RING PORTS - STAGGERED PORTS

--------------------------------------------------------------------------------
