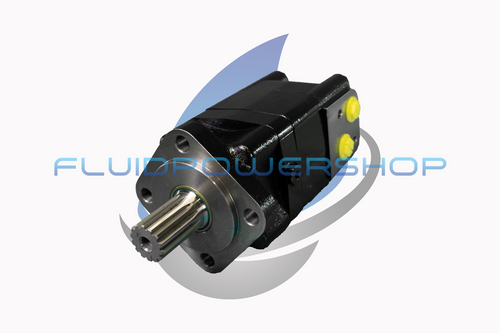

NEW AFTERMARKET REPLACEMENT FOR DANFOSS 151F2213 MOTOR / 151F2213-AFT

product description

NEW AFTERMARKET REPLACEMENT FOR DANFOSS 151F2213 MOTOR / 151F2213-AFT

Form, fit, and function the same, at a substantial savings

All units are TESTED same day prior to shipment, and come complete with a 2-year warranty

Item is in stock, ships same day with an order placed by 2pm EST. Repair parts also in stock

Questions? Give us a call 24hrs a day 1-877-FLUIDPOWER

--------------------------------------------------------------------------------

Specifications:

Aftermarket Char-Lynn Motor OMS Series

DISPLACEMENT: 18.71 in3/r [306.6 cm3/r]

SHAFT: 1.250 [31.75] DIA. FLAT ROOT SIDE FIT, 14 TOOTH, 12/24 DP 30 DEG. INVOLUTE SPLINE WITH .375-16 UNC-2B THREAD IN END, 1.30 [33.0] MINIMUM FULL SPLINE LENGTH

MOUNT: STANDARD, 4 BOLT; 3.25 [82.6] PILOT DIA. .535 [13.59] DIA. HOLES ON 4.19 [106.4] DIA. BOLT CIRCLE

PORT SIZE: .875-14 UNF-2B SAE O-RING PORTS - STAGGERED PORTS

--------------------------------------------------------------------------------
