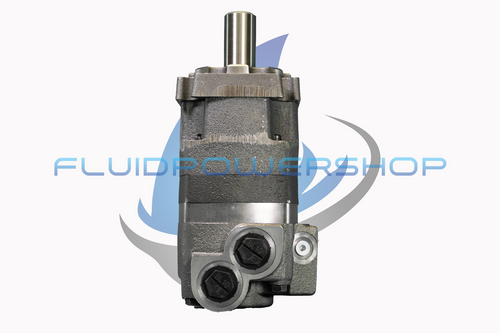

NEW OEM REPLACEMENT FOR CHAR-LYNN 109-1305-006 MOTOR
Form, fit, and function the same, at a substantial savings
All units are TESTED same day prior to shipment, and come complete with a 2-year warranty
Item is in stock, ships same day with an order placed by 2pm EST. Repair parts also in stock
Questions? Give us a call 24hrs a day 1-877-FLUIDPOWER
--------------------------------------------------------------------------------
Specifications:
OEM Char-Lynn Motor 4000 Series
DISPLACEMENT: 7.95 in3/r [130.3 cm3/r]
SHAFT: 1.250 [31.75] DIA. FLAT ROOT SIDE FIT, 14 TOOTH, 12/24 DP 30 DEG. INVOLUTE SPLINE, 1.50 [38.1] MINIMUM FULL SPLINE LENGTH WITH .375-16UNC-2B THREAD
MOUNT: STANDARD, 4 BOLT; 5.000 [127.00] PILOT DIA. .562 [14.27] DIA.HOLES ON 6.375 [161.92] DIA. BOLT CIRCLE (SAE C)
PORT SIZE: 1.0625-12 UN-2B SAE O-RING PORTS - STAGGERED PORTS
--------------------------------------------------------------------------------
